分子泵组

来源：武汉普朗克科技有限公司 发布时间：2020-03-02

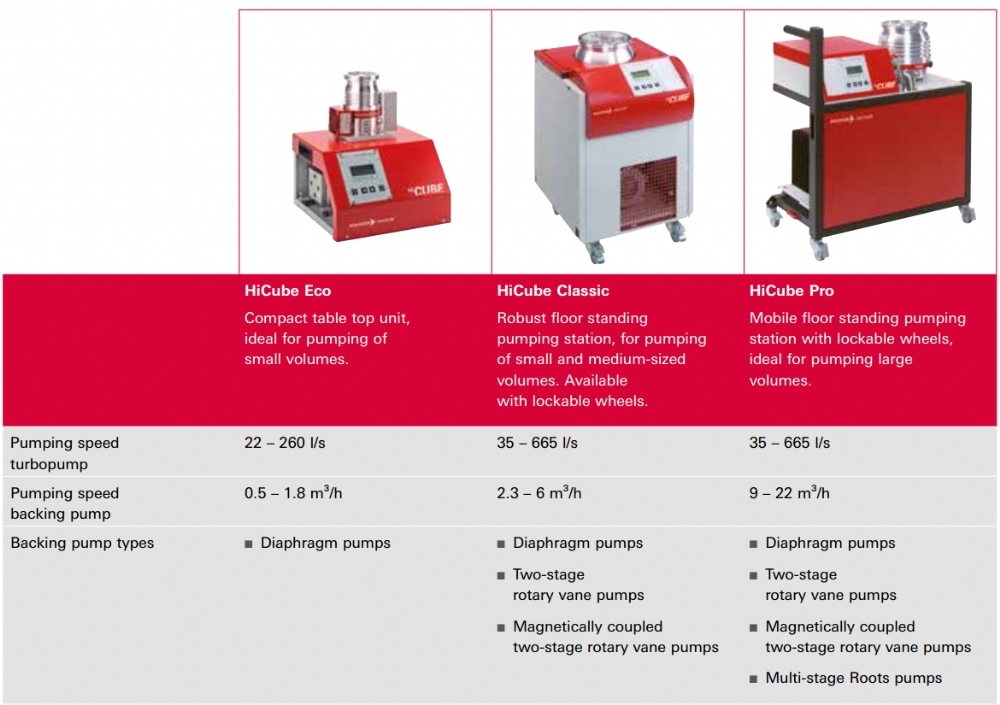

分子泵组系列： Hicube Eco 、Hicube Classic、Hicube Pro

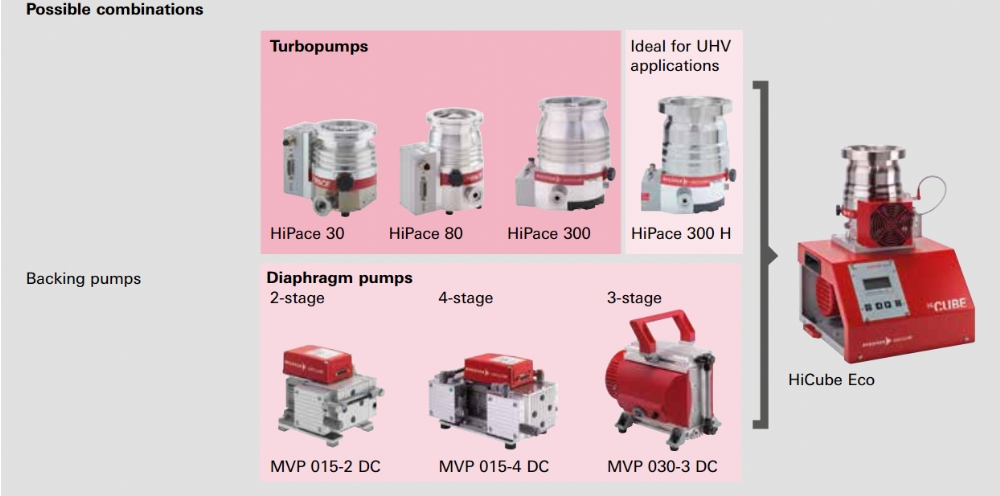

分子泵组  Hicube  Eco 系列



Pumping station  HiCube 30 Eco HiCube 80 Eco  HiCube 300 Eco  HiCube 300 H Eco
Flange (in)  DN40 KF DN63 K DN 63 CF DN40 KF DN63 K DN 63 CF DN 100 K DN 100 CF DN 100 K DN 100 CF
Pumping speed for Nitrogen N2 l/s  22 32 32 35 67 67 260 260 260 260
MVP 015-2
Ultimate pressure hPa  <1.10-7 <1.10-7 <1.10-8 <1.10-7 <1.10-7 <1.10-8 <1.10-7 <1.10-8 <1.10-7 <1.10-10
Pumping speed backing pump at 50 Hz m3/h  1 1 1 1 1 1 1 1 1 1
Weight of pumping station1) kg  12.1 12.1 13.3 12.5 13.9 12.5 16.3 18.8 16.3 18.3
Power consumption W  170 170 170 170 170 170 270 270 270 270
MVP 015-4
Ultimate pressure hPa  <1.10-7 <1.10-7 <1.10-8 <1.10-7 <1.10-7 <1.10-8 <1.10-7 <1.10-8 <1.10-7 <1.10-10
Pumping speed backing pump at 50 Hz m3/h  0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75
Weight of pumping station1) kg  13.8 13.8 15 14.2 15.6 14.2 18 20.5 18 20
Power consumption W  170 170 170 270 270 270 270 270 270 270
MVP 030-3
Ultimate pressure hPa  <1.10-7 <1.10-7 <1.10-8 <1.10-7 <1.10-7 <1.10-8 <1.10-7 <1.10-8 <1.10-7 <1.10-10
Pumping speed backing pump at 50 Hz m3/h 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8
Weight of pumping station1) kg  13.7 13.7 14.9 14.1 15.5 14.1 17.9 20.4 17.9 19.9
Power consumption W  270 270 270 270 270 270 270 270 270 270

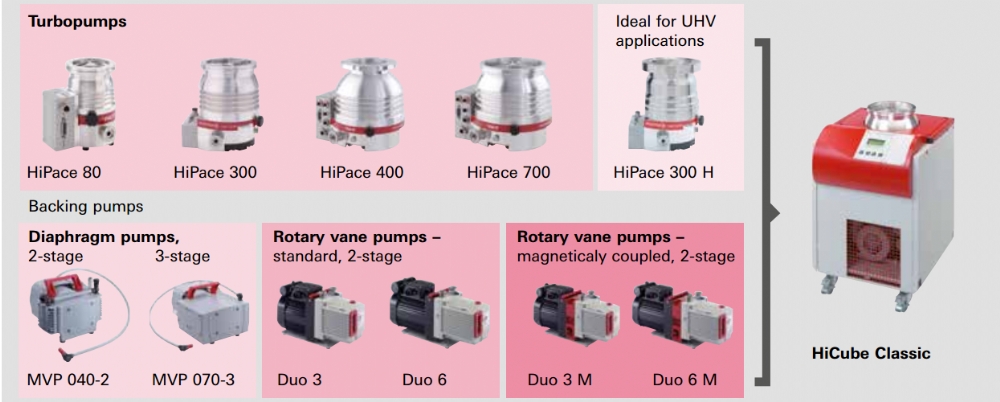

分子泵组  Hicube  Classic 系列



Pumping station  HiCube 80 Classic HiCube 300 Classic  HiCube 300 H Classic  HiCube 400 Classic  HiCube 700 Classic
Flange (in)  DN63 K DN 63 CF DN 100 K  DN 100 CF DN 100 K  DN 100 CF DN 100 K  DN 100 CF DN 160 K  DN 160 CF
Pumping speed for nitrogen N2 l/s  67 67 260 260 260 260 355 355 685 685
Rotary vane pump Duo 3
Ultimate pressure hPa <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10
Pumping speed backing pump at 50 Hz m3/h 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Weight of pumping station:1) kg  42.8 44.2 47.1 49.1 46.6 48.6 52 57.9 51.9 57.8
Power consumption W  310 310 520 520 520 520 630 630 630 630
Rotary vane pump Duo 3 M
Ultimate pressure hPa <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10
Pumping speed backing pump at 50 Hz m3/h  2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Weight of pumping station:1) kg  43.5 44.9 47.8 49.8 47.3 49.3 52.7 58.6 52.6 58.5
Power consumption W  320 320 530 530 530 530 640 640 640 640
Rotary vane pump Duo 6 M
Ultimate pressure hPa  <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10
Pumping speed backing pump at 50 Hz m3/h 5 5 5 5 5 5 5 5 5 5
Weight of pumping station:1) kg  48.8 50.2 53.1 55.1 52.6 54.6 58 63.9 57.9 63.8
Power consumption W  310 310 520 520 520 520 630 630 630 630
Diaphragm pump MVP 040-2
Ultimate pressure hPa  <1.10-7 <1.10-8 <1.10-7 <1.10-8 <1.10-7 <1.10-8 <1.10-7 <1.10-8 <1.10-7 <1.10-8
Pumping speed backing pump at 50 Hz m3/h  2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3
Weight pumping station:1) kg  42.2 43.6 46.5 48.5 46 48 51.4 57.3 51.3 57.2
Power consumption W  530 530 740 740 740 740 850 850 850 850
Diaphragm pump MVP 070-3
Ultimate pressure hPa  <1.10-7 <1.10-8 <1.10-7 <1.10-8 <1.10-7 <1.10-8 <1.10-7 <1.10-8 <1.10-7 <1.10-8
Pumping speed backing pump at 50 Hz m3/h  3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8
Weight of pumping station:1) kg 47.2 48.6 51.5 53.5 51 53 56.4 62.3 56.3 62.2
Power consumption W  790 790 1000 1000 1000 1000 1110 1110 1110 1110

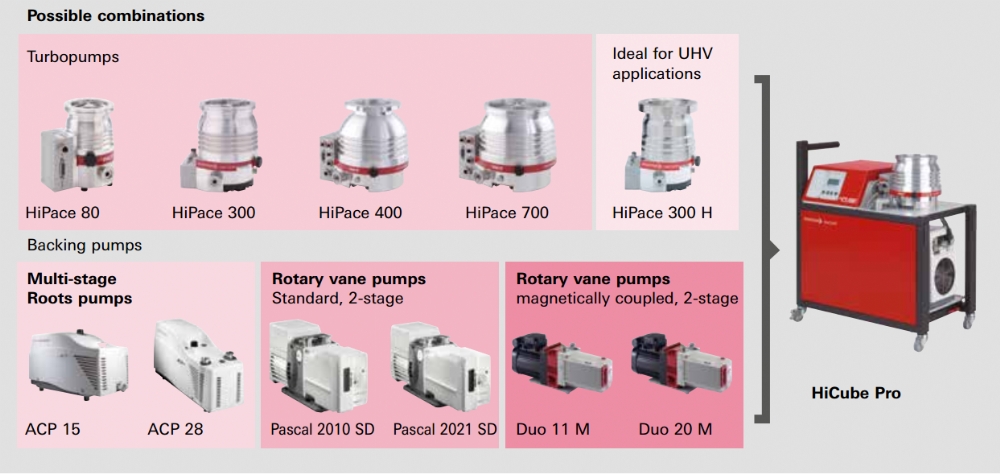

分子泵组  Hicube  Pro 系列



Pumping station  HiCube 80 Pro HiCube 300 Pro  HiCube 300 H  Pro HiCube 400 Pro  HiCube 700 Pro
Flange (in) DN40 KF DN63 K DN 63 CF DN 100 K  DN 100 CF  DN 100 K  DN 100 CF  DN 100 K  DN 100 CF  DN 160 K  DN 160 CF
Pumping speed for nitrogen N2 l/s  35 67 67 260 260 260 260 355 355 685 685
Ultimate pressure
with Multi-stage Roots pump ACP hPa <1.10-7 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10
with rotary vane pump DuoLine hPa <1.10-7 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10
with rotary vane pump Pascal hPa <1.10-7 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10 <1.10-7 <5.10-10
Rotary vane pump Duo 11 M
Pumping speed backing pump at 50 Hz m3/h  9 9 9 9 9 9 9 9 9 9 9
Weight of puming station1) kg  67.7 67.7 69.1 72 74 71.5 73.5 76.5 82.8 76.8 82.7
Power consumption W  430 430 430 640 640 640 640 750 750 750 750
Rotary vane pump Duo 20 M
Pumping speed backing pump at 50 Hz m3/h 20 20 20 20 20 20 20 20 20 20 20
Weight puming station1) kg  92.7 92.7 94.1 97 99 96.5 98.5 101.9 107.8 101.8 107.7
Power consumption W  1030 1030 1030 1240 1240 1240 1240 1350 1350 1350 1350
Rotary vane pump Pascal 2010
Pumping speed backing pump at 50 Hz m3/h  9 9 9 9 9 9 9 9 9 9 9
Weight of puming station1) kg  74.7 74.7 76.1 79 81 78.5 80.5 83.9 89.8 83.8 89.7
Power consumption W 680 680 680 890 890 890 890 1000 1000 1000 1000
Rotary vane pump Pascal 2021
Pumping speed backing pump at 50 Hz m3/h 18 18 18 18 18 18 18 18 18 18 18
Weight of puming station1) kg  76.7 76.7 78.1 81 83 80.5 82.5 85.9 91.8 85.8 91.7
Power consumption W  680 680 680 890 890 890 890 1000 1000 1000 1000
Multi-stage Roots pump ACP 15
Pumping speed backing pump at 50 Hz m3/h  14 14 14 14 14 14 14 14 14 14 14
Weight of puming station1) kg  73.6 73.6 75 77.9 79.9 77.4 79.4 82.8 88.7 82.7 88.6
Power consumption W 590 590 590 800 800 800 800 910 910 910 910
Multi-stage Roots pump ACP 28
Pumping speed backing pump at 50 Hz m3/h  27 27 27 27 27 27 27 27 27 27 27
Weight of puming station1) kg  80.6 80.6 82 84.9 86.9 84.4 86.4 89.8 95.7 89.7 95.6
Power consumption W  840 840 840 1050 1050 1050 1050 1160 1160 1160 1160
