隔膜泵 MVP 015/MVP 020/MVP 040/MVP 070
产品优点:
绝对干燥无油的真空; 长寿命膜片; 低震动，低噪音; 高可靠性; 维护简便，可方便更换膜片和阀门; 多电压马达或直流驱动，可应用于世界各个地方
隔膜泵(MVP)应用范围
作为多款Pfeiffer 涡轮分子泵的前级泵; 可用于各种系统和泵组; 实验室应用; 研发; 分析; 化学; 检漏各种需要无油干燥的真空环境和需抽取不能被污染的气体的用途。
| 型号 | 连接尺寸DN | 极限真空(mbar) | 抽速m3/h | 噪音比dB(A) | 重量kg | |
| 进气口 | 出气口 | |||||
| MVP 006 | G 1/8" | G 1/8" | ≦2 | 0.25 | ≦50 | 1.8 |
| MVP 015 | G 1/8" | G 1/8" | ≦4.5 | 0.9 | ≦52 | 6.5 |
| MVP 020 | G 1/8" | G 1/8" | ≦2 | 1.2 | ≦48 | 6.5 |
| MVP 030 | G 1/8" | G 1/8" | ≦3 | 1.8 | ≦48 | 4.3 |
| MVP 040 | G 1/4" | G 1/4" | ≦5 | 2.3 | ≦53 | 11.4 |
| MVP 070 | G 1/4" | G 1/4" | ≦1 | 3.8 | ≦55 | 16.4 |

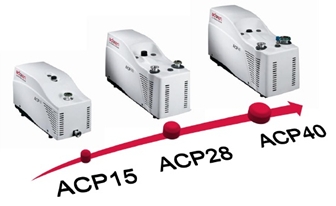

多级罗茨干泵 ACP 15/ACP 28/ACP 40
| 型 号 | 连接尺寸 DN | 极限真空(mbar) | 抽速 m3/h | 重量 kg | |
| 进气口 | 出气口 | ||||
| ACP 15 | DN 25 | DN 16 | ≦3.10-2 | 14 | 23 |
| ACP 28 | DN 25 | DN 25 | ≦3.10-2 | 27 | 30 |
| ACP 40 | DN 40 | DN 25 | ≦3.10-2 | 37 | 32 |
涡旋干泵 HiScroll
非常安静，紧凑，无油泵
| HiScroll 6 | HiScroll 12 | HiScroll 18 | |
| Flange (in) | DN 25 ISO-KF | DN 25 ISO-KF | DN 25 ISO-KF |
| Flange (out) | DN 25 ISO-KF | DN 25 ISO-KF | DN 25 ISO-KF |
| Pumping speed | 6.1 m3/h | 12.1 m3/h | 18.1 m3/h |
| Rotational speed | 1,000–2,500 rpm | 624–1,560 rpm | 624–1,560 rpm |
| Ultimate pressure without gas ballast | 3.10-2 hPa | 2.10-2 hPa | 1.10-2 hPa |
| Ultimate pressure with gas ballast level 1 | 7.10-2 hPa | 5.10-2 hPa | 3.10-2 hPa |
| Ultimate pressure with gas ballast level 2 | 4.10-1 hPa | 4.10-1 hPa | 2.10-1 hPa |
| Leak rate | 5.10-7 Pam3/h | 5.10-7 Pam3/h | 5.10-7 Pam3/h |
| Ambient temperature | 5–40 °C | 5–40 °C | 5–40 °C |
| Exhaust pressure, max. | 1,500 hPa | 1,500 hPa | 1,500 hPa |
| Intake pressure max. | 1,100 hPa | 1,100 hPa | 1,100 hPa |
| Intake pressure at continuous operation max. | 200 hPa | 200 hPa | 200 hPa |
| Gas ballast level 1 | 8,000 sccm | 12,000 sccm | 16,000 sccm |
| Gas ballast level 2 | 11,000 sccm | 20,000 sccm | 21,000 sccm |
| Gas ballast inlet pressure max. | 1,500 hPa | 1,500 hPa | 1,500 hPa |
| Mains 50/60 Hz | 100–240 V | 100–240 V | 100–240 V |
| Max. Current | 10.0 A | 10.0 A | 10.0 A |
| Rated current consumption | 1.1 A | 1.3 A | 1.3 A |
| Protection category | IP 20 | IP 20 | IP 20 |
| I/O Interfaces | RS-485 | RS-485 | RS-485 |
| Cooling method, standard | air cooling | air cooling | air cooling |
| Emission sound pressure level (EN ISO 2151) | 48 dB(A) | 47 dB(A) | 47 dB(A) |
| Dimension | 380x220x257 mm | 419x265x304 mm | 419x265x304 mm |
| Weight | 19 kg | 24 kg | 23 kg |
